Brand - McMASTER-CARR
Item Number - 6831K24 McMASTER-CARR

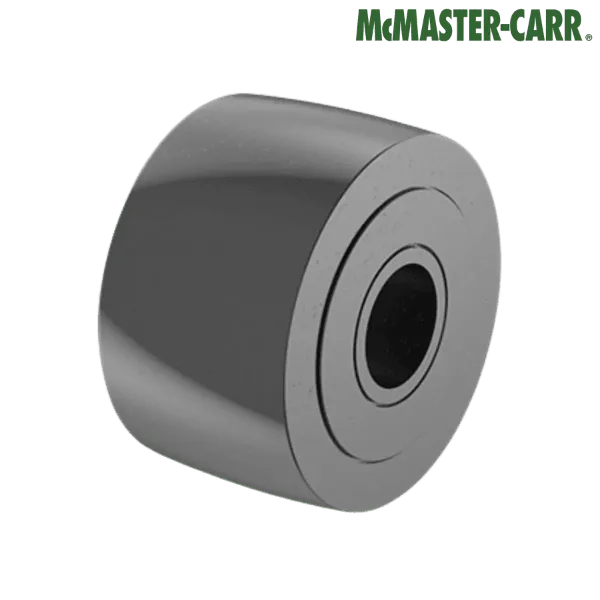

Category - Shaft-Mount Track Rollers (Black-Oxide Steel Flat Rollers without Seal)

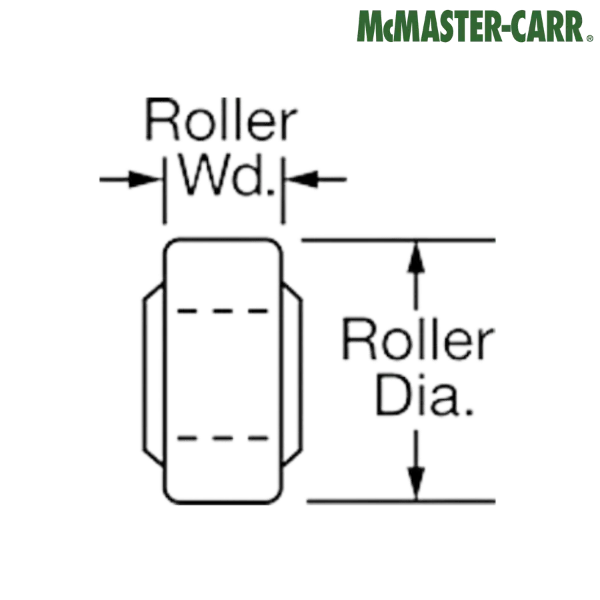

Roller Diameter (inch) - 3
Roller Diameter (mm) - 76.2
Roller Width (inch) - 1.75
Roller Width (mm) - 44.45
For Shaft Diameter (inch) - 1
For Shaft Diameter (mm) - 25.4
Overall Width (inch) - 1.8125
Overall Width (mm) - 46.0375
Maximum Speed (rpm) - 950
Radial Static Load Capacity (lbs) - 45000
Radial Dynamic Load Capacity (lbs) - 15000
Maximum Temperature (°F) - 220°
Bearing Type - Needle Roller
ID (inch) - 1
ID (mm) - 25.4
ID Tolerance - -0.0005" to 0.0001"

** Images are for representation purposes only
