Brand - McMASTER-CARR
Item Number - 6314K32 McMASTER-CARR

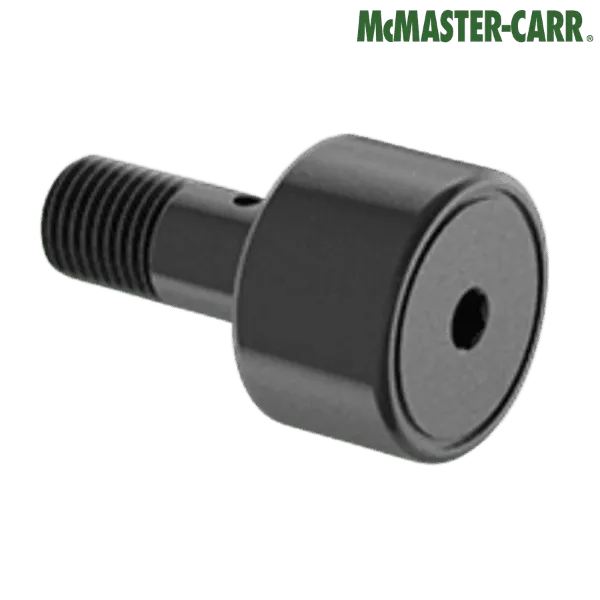

Category - Threaded Track Roller (Steel Flat Rollers without Seal)

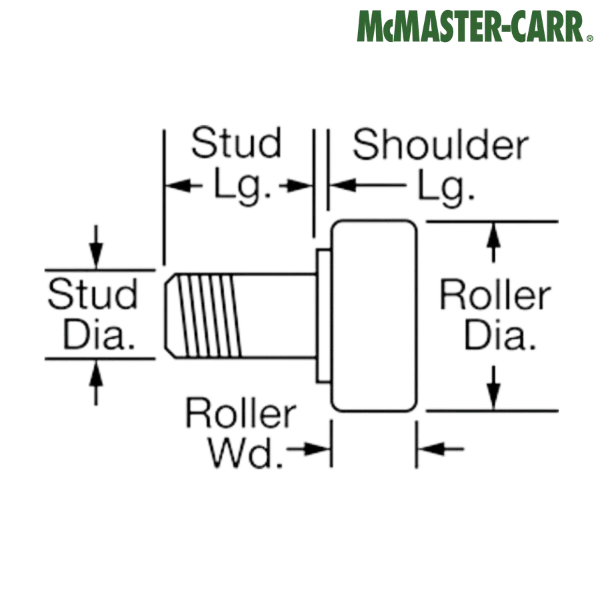

Diameter of Roller (mm) - 26
Width of Roller (mm) - 12
Diameter of Stud (mm) - 10
Length of Stud (mm) - 23
Thread Size - M10
Pitch of Thread (mm) - 1.25
Length of Thread (mm) - 12
Diameter of Shoulder (mm) - 17
Length of Shoulder (mm) - 0.6
Maximum Speed (rpm) - 8000
Radial Static Load Capacity (lbs) - 1500
Radial Dynamic Load Capacity (lbs) - 1200
Maximum Temperature (°F) - 245°
Inside Bearing Type - Needle Roller
Includes - Mounting Hardware
Roller-Mount Track Lubricators - 4248N15

** Images are for representation purposes only
