Brand - McMASTER-CARR
Item Number - 4944N17 McMASTER-CARR
Category - Threaded Track Rollers with Adjustable Shoulder (Steel Flat Rollers with Seal)
Diameter of Roller (mm) - 16
Width of Roller (mm) - 11
Stud Diameter (mm) - 6
Stud Length (mm) - 16
Thread SIze - M6
Thread Diameter (mm) - 1
Thread Length (mm) - 9
Shoulder Diameter (mm) - 9
Shoulder Length (mm) - 7
Height Adjustment Capability (mm) - 0.5
Maximum Speed (rpm) - 13000
Radial Static Load Capacity (lbs) - 520
Radial Dynamic Load Capacity (lbs) - 1300
Maximum Temperature (°F) - 250°
Bearing Type - Needle Roller
Includes - Mounting Hardware

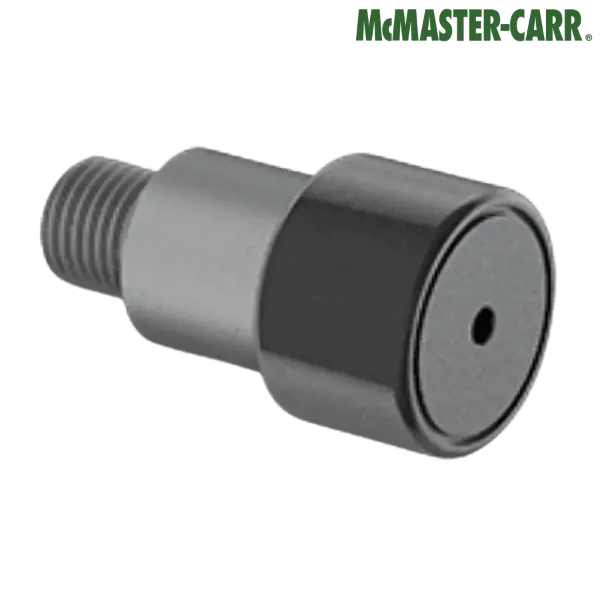

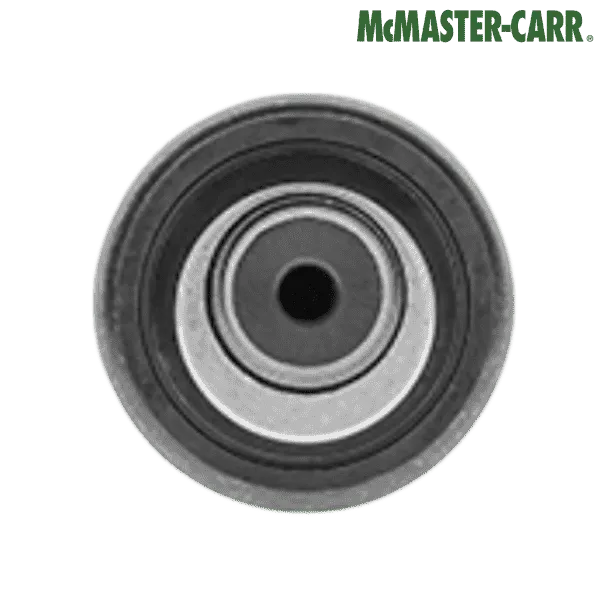

** Images are for representation purposes only
