Brand - McMASTER-CARR
Item Number - 4725K32 McMASTER-CARR

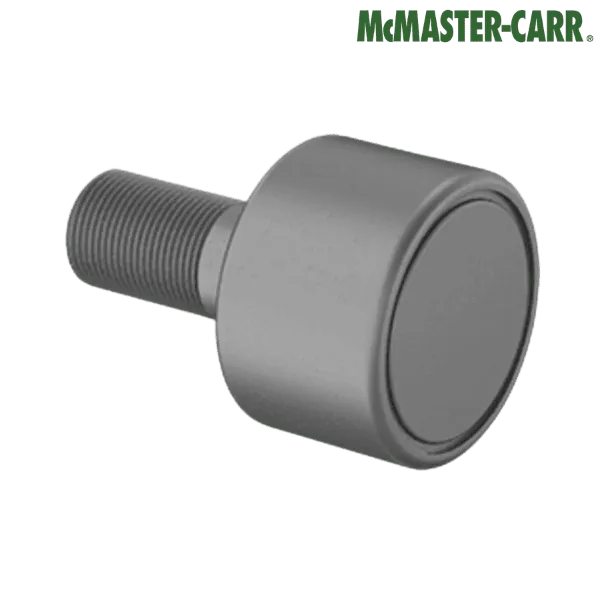

Category - Thrust-Load-Rated Corrosion-Resistant Threaded Track Rollers (440C Stainless Steel Flat Rollers With Seal)

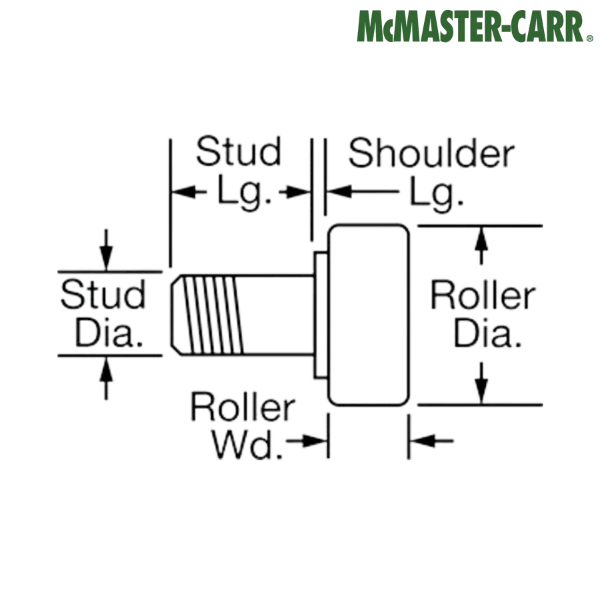

Roller Diameter (inch) - 1.25
Roller Diameter (mm) - 31.75
Roller Width (inch) - 0.8125
Roller Width (mm) - 20.6375
Stud Diameter (inch) - 0.5
Stud Diameter (mm) - 12.7
Stud Length (inch) - 1.25
Stud Length (mm) - 31.75
Thread Size - 1/2"-20
Thread Diameter (inch) - 0.5
Thread Diameter (mm) - 12.7
Number of Threads per inch - 20
Thread Length (inch) - 0.625
Thread Length (mm) - 15.875
Shoulder Diameter (inch) - 0.625
Shoulder Diameter (mm) - 15.875
Shoulder Length (inch) - 0.03125
Maximum Speed (rpm) - 6000
Radial Static Load Capacity (lbs) - 350
Radial Dynamic Load Capacity (lbs) - 350
Static Thrust Load Capacity (lbs) - 320
Maximum Temperature (°F) - 225°
Bearing Type - Ball
Includes - Mounting Hardware

** Images are for representation purposes only
