Brand - McMASTER-CARR
Item Number - 4229N17 McMASTER-CARR

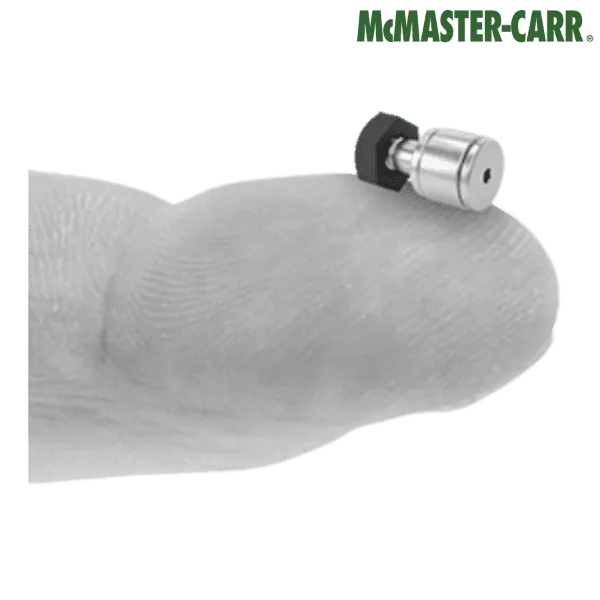

Category - Miniature High Speed Threaded Track Roller (440C Stainless Steel Flat Rollers Without Seal)
Roller Diameter (mm) - 6
Roller Width (mm) - 4
Stud Diameter (mm) - 3
Stud Length (mm) - 6
Thread Size - M3
Thread Pitch (mm) - 0.5
Thread Length (mm) - 3
Shoulder Diameter (mm) - 5.8
Shoulder Length (mm) - 0.7
Maximum Speed (rpm) - 28000
Radial Static Load Capacity (lbs) - 100
Radial Dynamic Load Capacity (lbs) - 110
Maximum Temperature (°F) - 245°
Bearing Type - Needle Roller
Includes - Nut

** Images are for representation purposes only
