Brand - McMASTER-CARR
Item Number - 3672K58 McMASTER-CARR

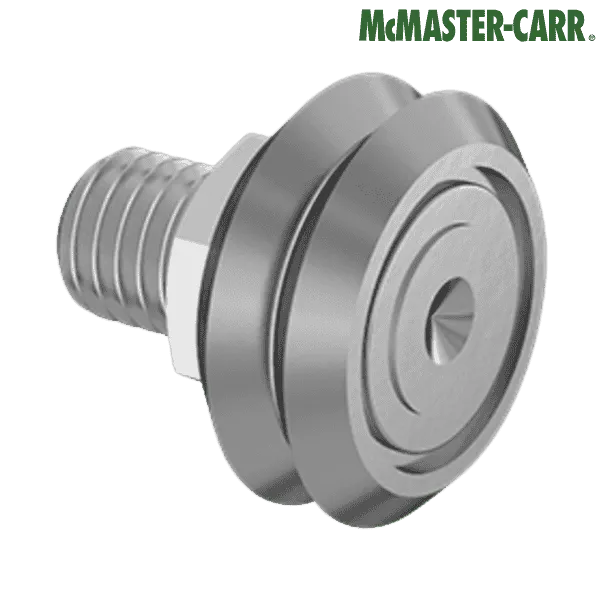

Category - Threaded V-Groove Track Rollers (Steel V-Groove Rollers with Seal)

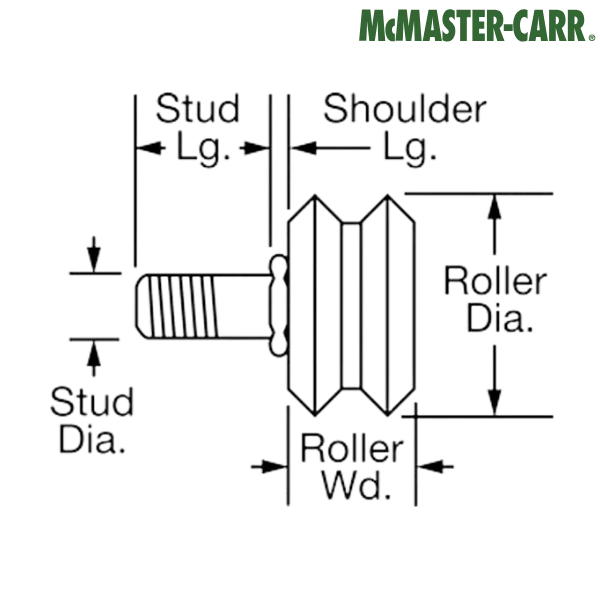

Roller Diameter (mm) - 46
Roller Width (mm) - 16
Stud Diameter (mm) - 12
Stud Length (mm) - 30
Thread Size (mm) - M12
Pitch Diameter of Thread (mm) - 1.75
Length of Thread (mm) - 18
Shoulder Length (mm) - 3.4
Hex Shoulder Width (mm) - 19
Groove Width (mm) - 8
Groove Depth (mm) - 4
Maximum Speed (rpm) - 2200
Radial Static Load Capacity (lbs) - 1300
Radial Dynamic Load Capacity (lbs) - 1300
Static Thrust Load Capacity (lbs) - 350
Maximum Temperature (°F) - 210°
Inside Bearing Type - Ball Bearing
Includes - Mounting Hardware
