Brand - McMASTER-CARR
Item Number - 3672K21 McMASTER-CARR

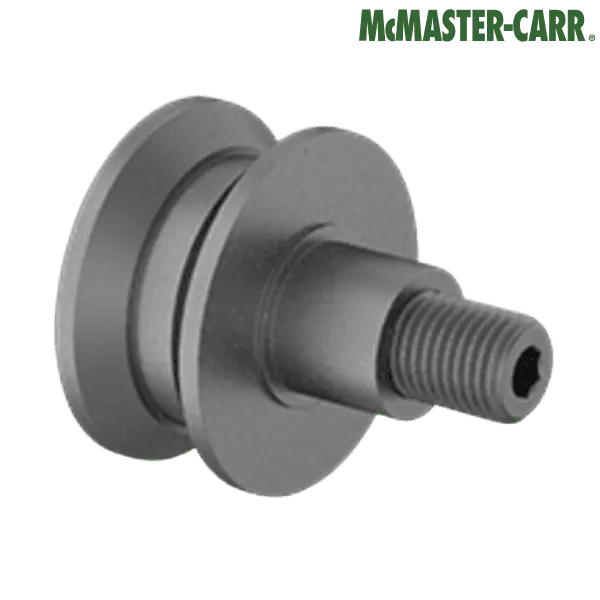

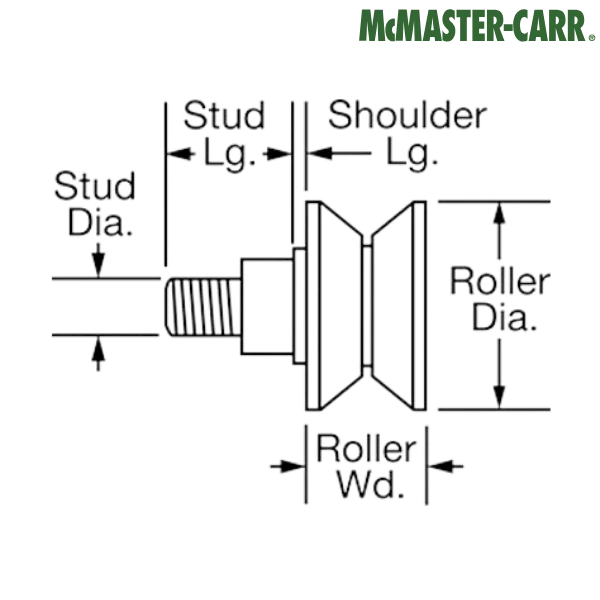

Category - Threaded V-Groove Track Rollers with Adjustable Shoulder (Steel V-Groove Rollers with Seal)
Roller Diameter (mm) - 20
Roller Width (mm) - 8
Stud Diameter (mm) - 6
Stud Length (mm) - 8
Thread Size (mm) - M6
Pitch Diameter of Thread (mm) - 1
Length of Thread (mm) - 6
Shoulder Length (mm) - 3.4
Hex Shoulder Width (mm) - 11.11
Groove Width (mm) - 4
Groove Depth (mm) - 2
Maximum Speed (rpm) - 5000
Radial Static Load Capacity (lbs) - 270
Radial Dynamic Load Capacity (lbs) - 270
Static Thrust Load Capacity (lbs) - 50
Maximum Temperature (°F) - 245°
Includes - Mounting Hardware

** Images are for representation purposes only
