Product Details

Brand - McMASTER-CARR
Item Number - 3647K16 McMASTER-CARR

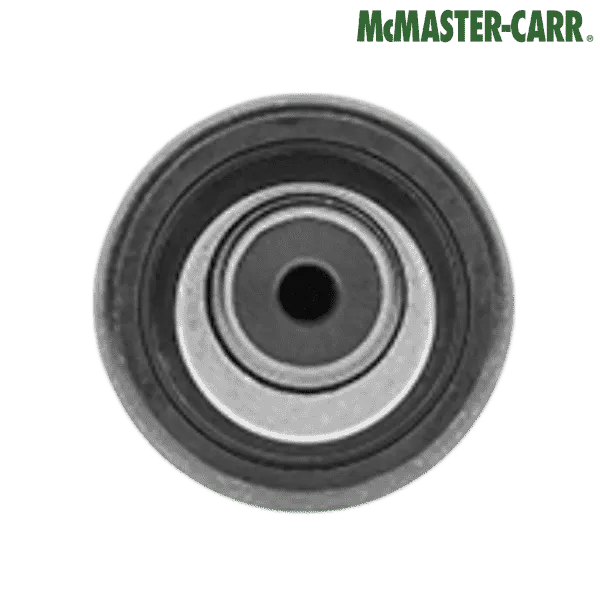

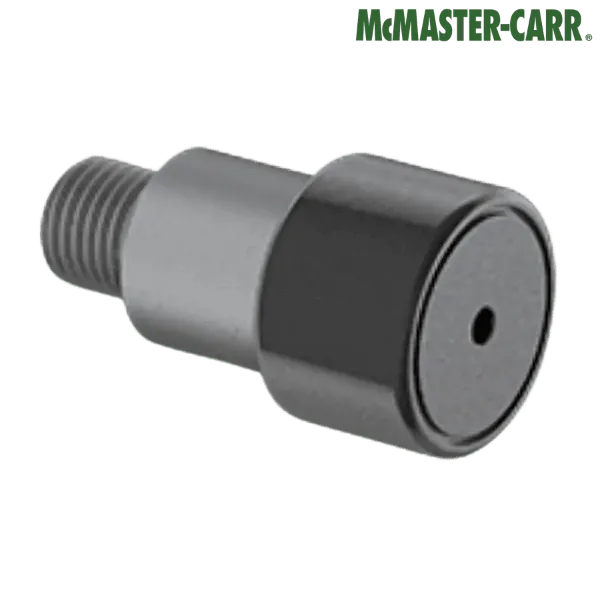

Category - Threaded Track Rollers with Adjustable Shoulder (Steel Flat Rollers with Seal)

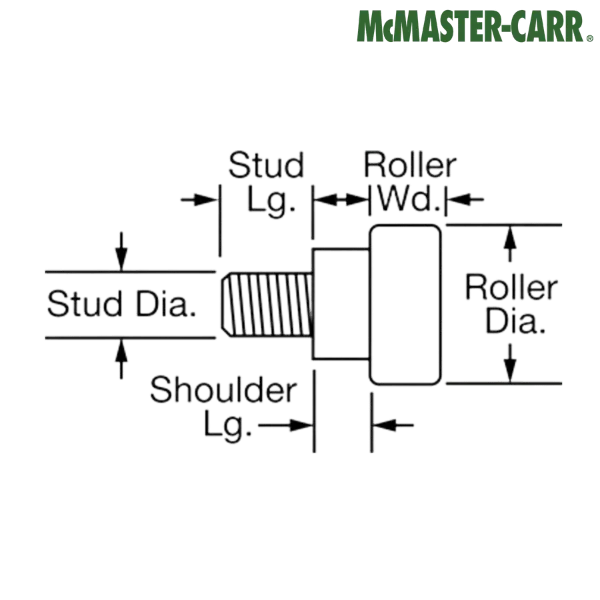

Diameter of Roller (inch) - 1.375
Diameter of Roller (mm) - 34.925
Width of Roller (inch) - 0.75
Width of Roller (mm) - 19.05
Stud Diameter (inch) - 0.5
Stud Diameter (mm) - 12.7
Stud Length (inch) - 0.625
Stud Length (mm) - 15.875
Thread Size - 1/2"-20
Thread Diameter (inch) - 0.5
Number of Threads per inch - 20
Thread Length (inch) - 0.625
Thread Length (mm) - 15.875
Shoulder Diameter (inch) - 0.6875
Shoulder Diameter (mm) - 17.4625
Shoulder Length (inch) - 0.625
Shoulder Length (mm) - 15.875
Height Adjustment Capability (inch) - 0.03
Maximum Speed (rpm) - 3900
Radial Static Load Capacity (lbs) - 6600
Radial Dynamic Load Capacity (lbs) - 4200
Maximum Temperature (°F) - 250°
Bearing Type - Needle Roller
Includes - Mounting Hardware

** Images are for representation purposes only
