Brand - McMASTER-CARR
Item Number - 3643K73 McMASTER-CARR

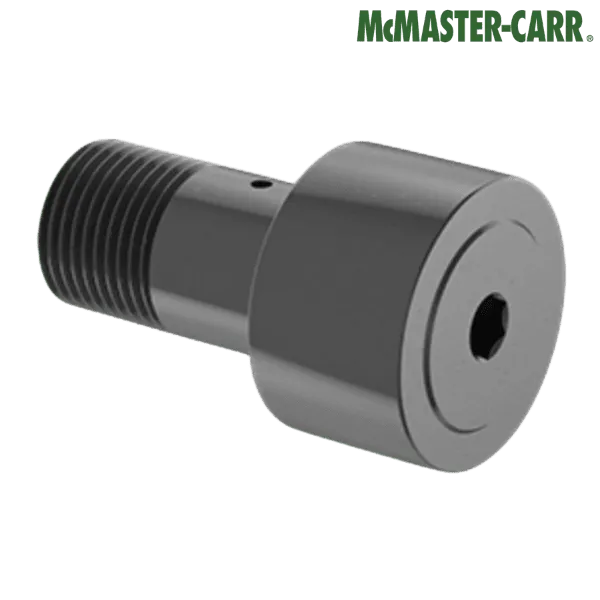

Category - High Load Threaded Track Roller (Black-Oxide Steel Crowned Rollers with Seal)

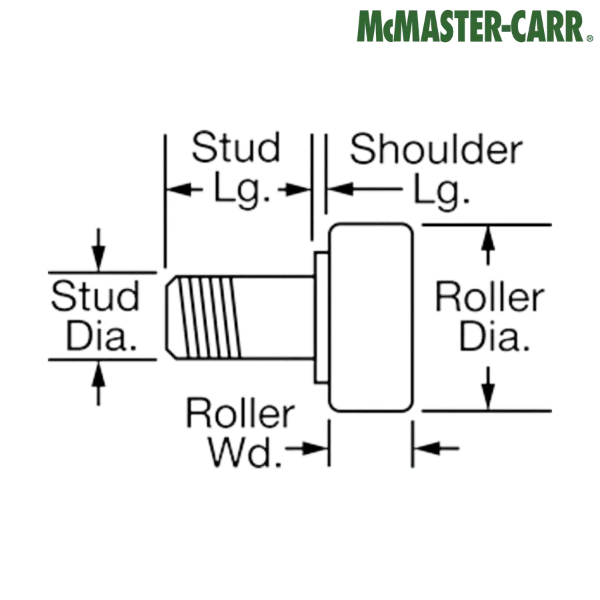

Diameter of Rollers (inch) - 2.25
Diameter of Rollers (mm) - 57.15
Width of Rollers (inch) - 1.25
Width of Rollers (mm) - 31.75
Diameter of Stud (inch) - 1.125
Diameter of Stud (mm) - 28.575
Length of Stud (inch) - 2
Length of Stud (mm) - 50.8
Thread Diameter (inch) - 1.125
Thread Diameter (mm) - 28.575
Number of Threads per inch - 12
Thread Length (inch) - 1
Thread Length (mm) - 25.4
Shoulder Diameter (inch) - 1.46875
Shoulder Diameter (mm) - 37.30625
Shoulder Length (inch) - 0.0625
Shoulder Length (mm) - 1.5875
Maximum Speed (rpm) - 1400
Radial Static Load Capacity (lbs) - 18000
Radial Dynamic Load Capacity (lbs) - 10000
Maximum Temperature (°F) - 245°
Inside Bearing Type - Needle Roller
Includes - Mounting Hardware

** Images are for representation purposes only
