Brand - McMASTER-CARR
Item Number - 3643K49 McMASTER-CARR

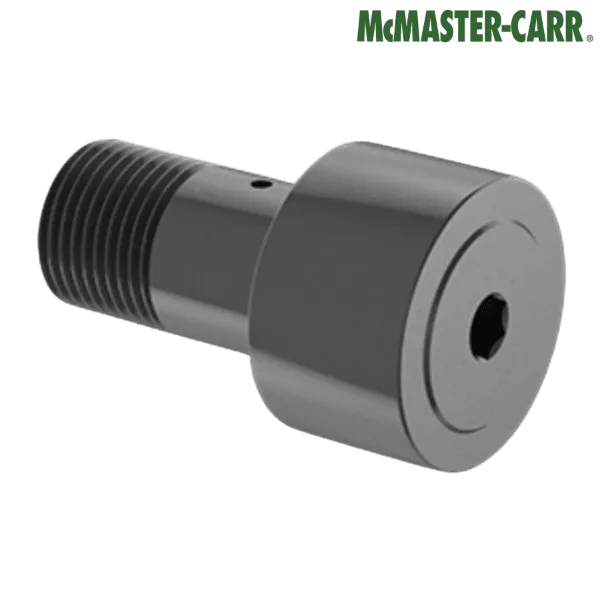

Category - High Load Threaded Track Roller (Black-Oxide Steel Flat Rollers with Seal)

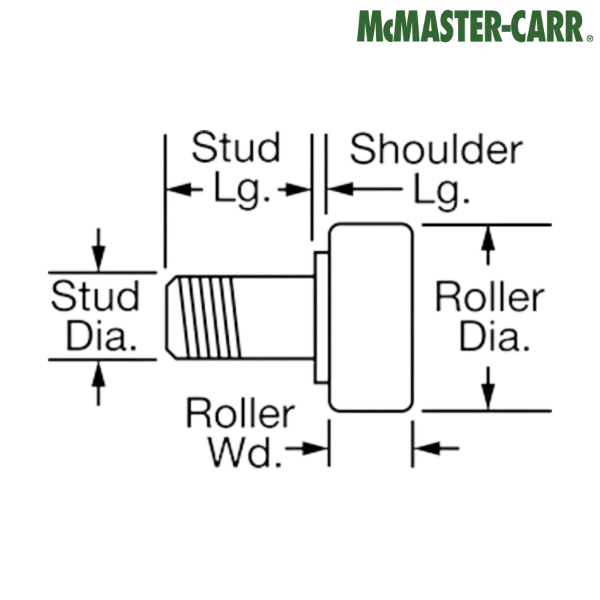

Diameter of Rollers (inch) - 0.875
Diameter of Rollers (mm) - 22.225
Width of Rollers (inch) - 0.5
Width of Rollers (mm) - 12.7
Diameter of Stud (inch) - 0.4375
Diameter of Stud (mm) - 11.1125
Length of Stud (inch) - 0.875
Length of Stud (mm) - 22.225
Thread Diameter (inch) - 0.4375
Thread Diameter (mm) - 11.1125
Number of Threads per inch - 20
Thread Length (inch) - 0.375
Thread Length (mm) - 9.525
Shoulder Diameter (inch) - 0.53125
Shoulder Diameter (mm) - 13.49375
Shoulder Length (inch) - 0.03125
Shoulder Length (mm) - 0.79375
Maximum Speed (rpm) - 3700
Radial Static Load Capacity (lbs) - 2700
Radial Dynamic Load Capacity (lbs) - 1900
Maximum Temperature (°F) - 245°
Inside Bearing Type - Needle Roller
Includes - Mounting Hardware

** Images are for representation purposes only
