Brand - McMASTER-CARR
Item Number - 3643K44 McMASTER-CARR

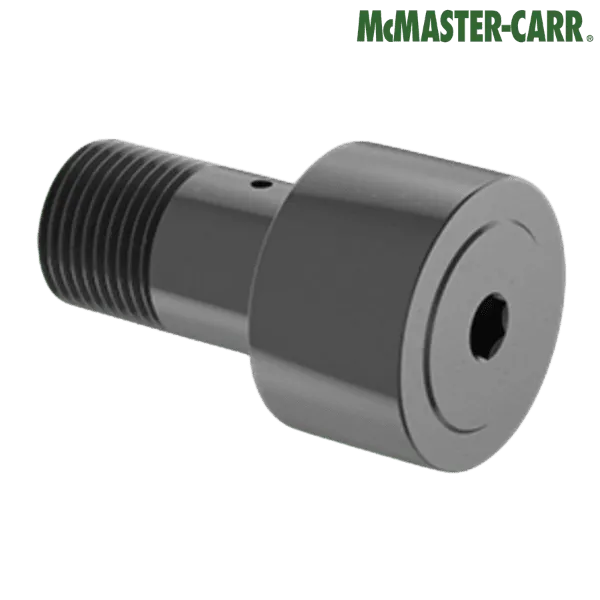

Category - High Load Threaded Track Roller (Black-Oxide Steel Flat Rollers with Seal)

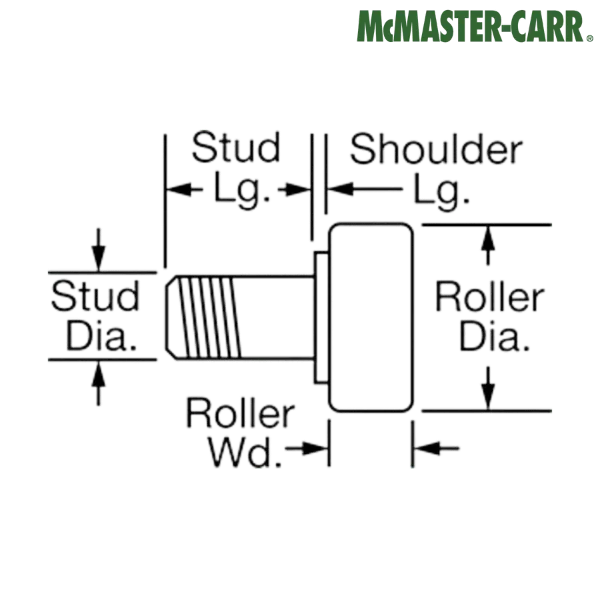

Diameter of Rollers (inch) - 0.5
Diameter of Rollers (mm) - 12.7
Width of Rollers (inch) - 0.375
Width of Rollers (mm) - 9.525
Diameter of Stud (inch) - 0.25
Diameter of Stud (mm) - 6.35
Length of Stud (inch) - 0.625
Length of Stud (mm) - 15.875
Thread Diameter (inch) - 0.25
Thread Diameter (mm) - 6.35
Number of Threads per inch - 28
Thread Length (inch) - 0.25
Thread Length (mm) - 6.35
Shoulder Diameter (inch) - 0.328125
Shoulder Diameter (mm) - 8.334375
Shoulder Length (inch) - 0.03125
Shoulder Length (mm) - 0.79375
Maximum Speed (rpm) - 6600
Radial Static Load Capacity (lbs) - 1200
Radial Dynamic Load Capacity (lbs) - 1000
Maximum Temperature (°F) - 245°
Inside Bearing Type - Needle Roller
Includes - Mounting Hardware

** Images are for representation purposes only
