Brand - McMASTER-CARR
Item Number - 2086K21 McMASTER-CARR

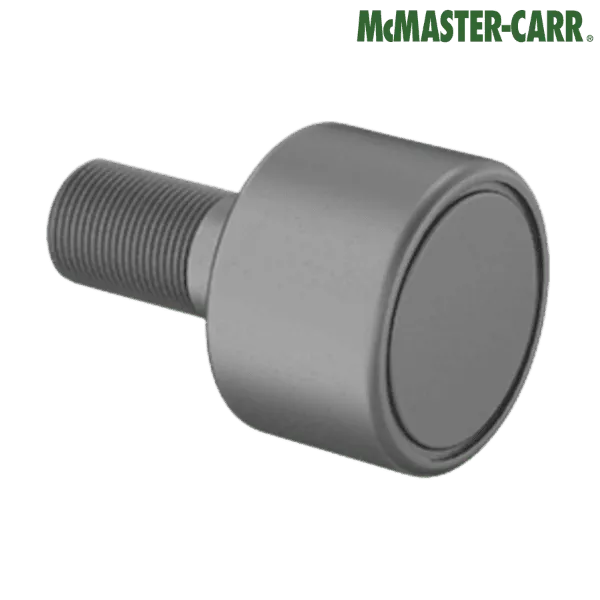

Category - Thrust Load Rated Threaded Track Roller (Steel Flat Rollers With Seal)

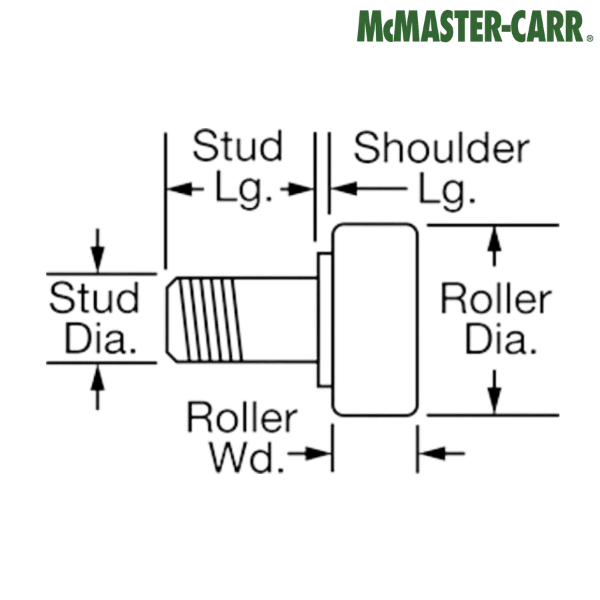

Roller Diameter (inch) - 1
Roller Diameter (mm) - 25.4
Roller Width (inch) - 0.75
Roller Width (mm) - 19.05
Stud Diameter (inch) - 0.4375
Stud Diameter (mm) - 11.1125
Stud Length (inch) - 1
Stud Length (mm) - 25.4
Thread Size - 7/16"-20
Thread Diameter (inch) - 0.4375
Thread Diameter (mm) - 11.1125
Number of Threads per inch - 20
Thread Length (inch) - 0.5
Thread Length (mm) - 12.7
Shoulder Diameter (inch) - 0.5
Shoulder Diameter (mm) - 12.7
Shoulder Length (inch) - 0.03125
Shoulder Length (mm) - 0.79375
Maximum Speed (rpm) - 6000
Radial Static Load Capacity (lbs) - 380
Radial Dynamic Load Capacity (lbs) - 350
Static Thrust Load Capacity (lbs) - 240
Maximum Temperature (°F) - 325°
Bearing Type - Ball
Includes - Mounting Hardware
