Brand - McMASTER-CARR
Item Number - 1470T642 McMASTER-CARR

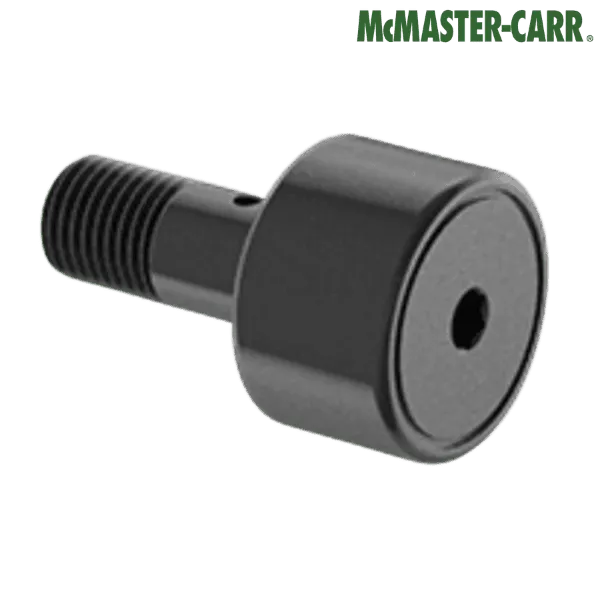

Category - Threaded Track Roller (Black-Oxide Steel Crowned Rollers without Seal)

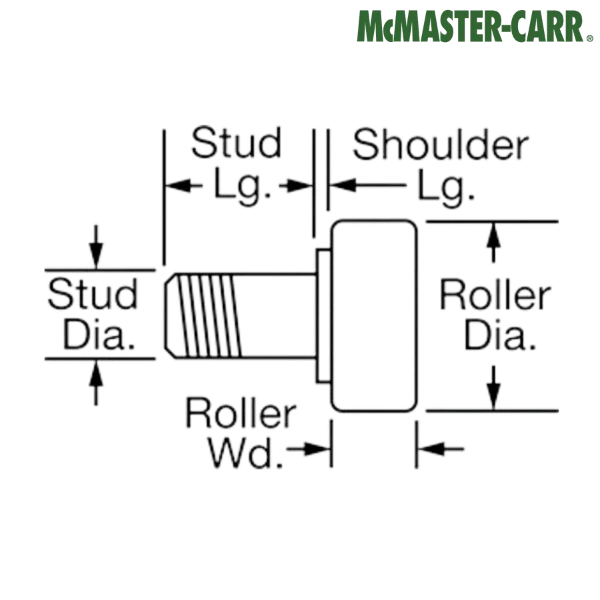

Diameter of Roller (mm) - 13
Width of Roller (mm) - 9
Diameter of Stud (mm) - 5
Length of Stud (mm) - 13
Thread Size - M5
Pitch of Thread (mm) - 0.8
Length of Thread (mm) - 7.5
Diameter of Shoulder (mm) - 9
Length of Shoulder (mm) - 0.6
Maximum Speed (rpm) - 20000
Radial Static Load Capacity (lbs) - 350
Radial Dynamic Load Capacity (lbs) - 450
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller
Roller-Mount Track Lubricators - 4248N11

** Images are for representation purposes only
