Brand - McMASTER-CARR
Item Number - 1470T627 McMASTER-CARR

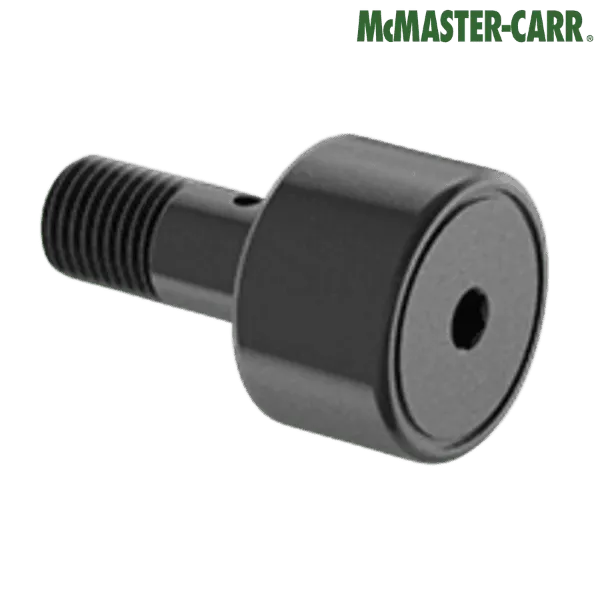

Category - Threaded Track Roller (Black-Oxide Steel Crowned Rollers with Seal)

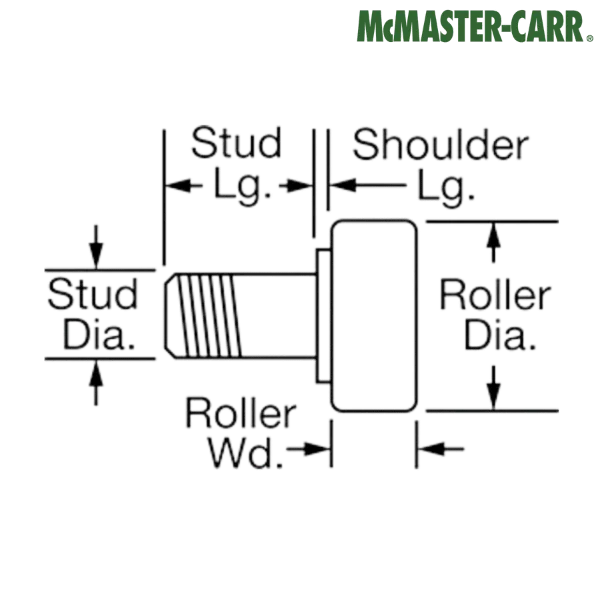

Diameter of Roller (mm) - 32
Width of Roller (mm) - 14
Diameter of Stud (mm) - 12
Length of Stud (mm) - 25
Thread Size - M12
Pitch of Thread (mm) - 1.5
Length of Thread (mm) - 14
Diameter of Shoulder (mm) - 21
Length of Shoulder (mm) - 0.6
Maximum Speed (rpm) - 6400
Radial Static Load Capacity (lbs) - 3400
Radial Dynamic Load Capacity (lbs) - 2400
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller
