Brand - McMASTER-CARR
Item Number - 1470T612 McMASTER-CARR

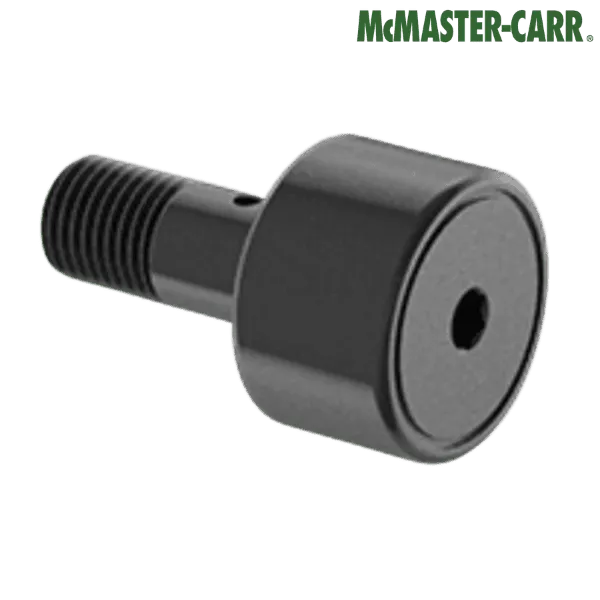

Category - Threaded Track Roller (Black-Oxide Steel Flat Rollers without Seal)

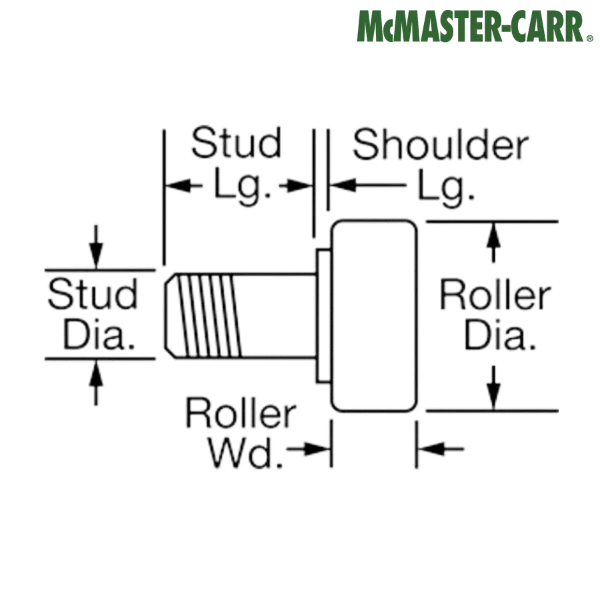

Diameter of Roller (mm) - 19
Width of Roller (mm) - 11
Diameter of Stud (mm) - 8
Length of Stud (mm) - 20
Thread Size - M8
Pitch of Thread (mm) - 1.25
Length of Thread (mm) - 11
Diameter of Shoulder (mm) - 13
Length of Shoulder (mm) - 0.6
Maximum Speed (rpm) - 10500
Radial Static Load Capacity (lbs) - 1100
Radial Dynamic Load Capacity (lbs) - 1500
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller
Roller-Mount Track Lubricators - 4248N13
