Brand - McMASTER-CARR
Item Number - 1470T56 McMASTER-CARR

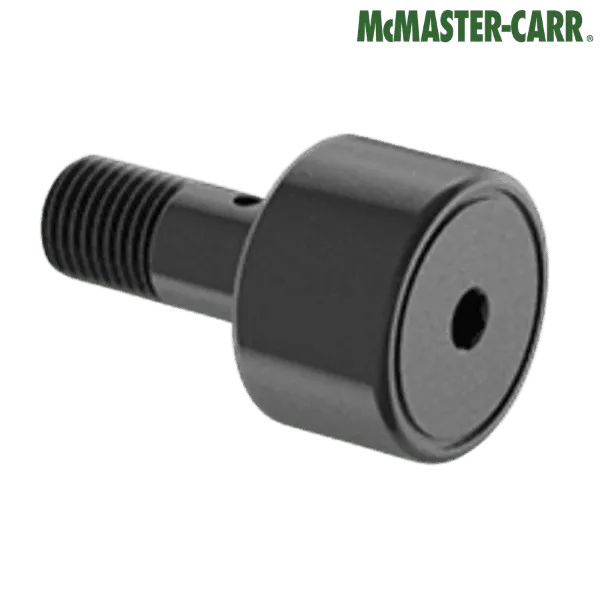

Category - Threaded Track Roller (Black-Oxide Steel Flat Rollers with Seal)

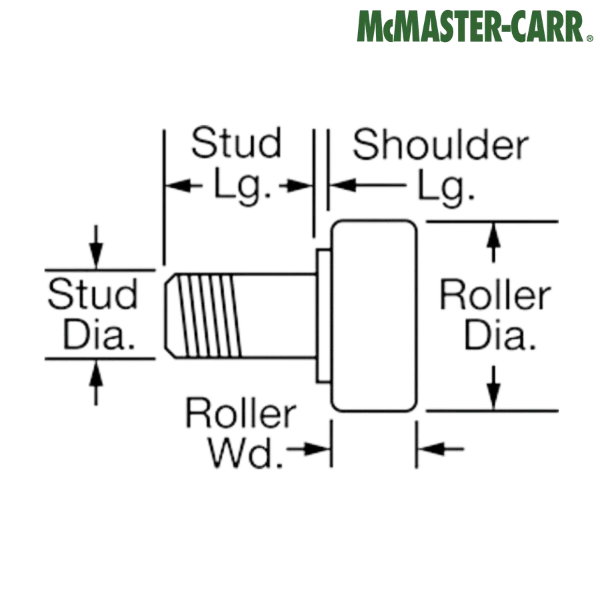

Diameter of Roller (inch) - 2
Diameter of Roller (mm) - 50.8
Width of Roller (inch) - 1.25
Width of Roller (mm) - 31.75
Diameter of Stud (inch) - 1.125
Diameter of Stud (mm) - 28.575
Length of Stud (inch) - 2
Length of Stud (mm) - 50.8
Diameter of Thread (inch) - 1.125
Diameter of Thread (mm) - 28.575
Number of Threads per inch - 12
Length of Thread (inch) - 1
Length of Thread (mm) - 25.4
Diameter of Shoulder (inch) - 1.40625
Diameter of Shoulder (mm) - 35.71875
Shoulder Length (inch) - 0.79375
Shoulder Length (mm) - 20.16125
Maximum Speed (rpm) - 1400
Radial Static Load Capacity (lbs) - 21000
Radial Dynamic Load Capacity (lbs) - 8000
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller

** Images are for representation purposes only
